RODEON Scan

RODEON Scan

The innovative 3D laser scanner that creates point clouds with high-quality panoramas.

RODEON Scan

Operating Principle:

  1. Record the point cloud by Laserscan
  2. Afterwards, or even synchronously to the Laserscan, record a full panorama

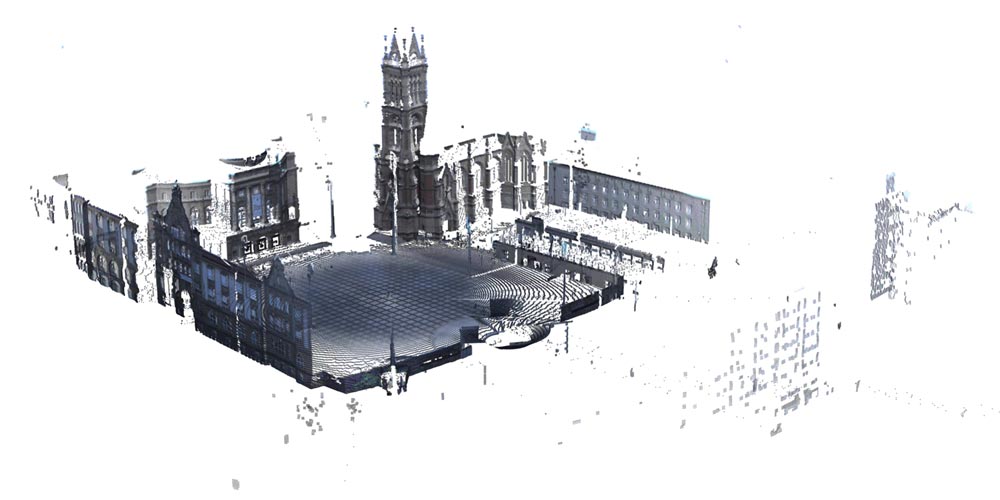

  3. Result: High-resolution panorama being projected on a stitch model of the coordinate cloud in VRML, DXF, PLY
  4. Recording without the stitching process is possible

Features:

  • Easy handling, intuitive control via notebook
  • Fully automated 3D Laser Scanner with panoramic image
  • High-resolution textures (even as HDR!)
  • Efficient and time-saving workflow by synchronous image recording during the scan
  • Works independent from ambient light with integrated flashbulbs
  • Export of 3D data in common formats (VRML, DXF, PLY)
  • Measuring range up to 250 m at Laser Class 1 (eye-safe)
  • Large vertical scanning angle from -75° to 90°
  • Instant panorama without stitching with an image resolution up to 1 gigapixels (1000 megapixels)

Optimal combination for efficient workflow: RODEON Scan and post-processing software RODEONmetric Modeler.

RODEON Scan
Technical Specifications:
Physical Dimensions 420 mm x 170 mm x 300 mm
Weight 14 kg / 30 lbs
Laser Class 1 (eyesafe)
Maximum Range 250 m
Number of Pixels/Panorama 1000 megapixels, stitchless
Battery Pack Operating Time approx 3 hours
Vertical Sscanning Resolution 0.125°
Horizontal scanning resolution at minimum 0.015°
Recording Range 0 to 360° horizontal, -75° to +90° vertical
Data Interface USB 2.0 High Speed
Scanning Time 12 minutes (for synchronous recordings at 0.125° resolution and 1 gigapixel full sphere panorama)
Optional Additional lighting by using 2 flashbulbs
Compatibility 100% compatible with all major CAD, 3D Modelling and Forensics software such as: SceneVision 3D, Autodesk AutoCAD, Autodesk 3DS Max, Bentley MicroStation, VIS-ALL 3D, MapScenes Forensics CAD, Crime Zone by CAD Zone

IMPORT File Formats:
Point Cloud: PLY, PTS , PTB, ASC, RPC
Image : RAW, TIF, JPG, PNG, BMP

EXPORT File Formats:
Point Cloud: PLY, PTS , PTB, ASC, RPC
Image : TIF, JPG, EXR
3D CAD: VRML, DXF
2D Floor Plan: DXF
Project File: PTGUI, Autopano, Papywizard (XML)

L.A.M.B.E.R.T.

L.A.M.B.E.R.T. (RODEON Scan All-in-One Solution)

The complete package for your visualization applications!

RODEON Scan

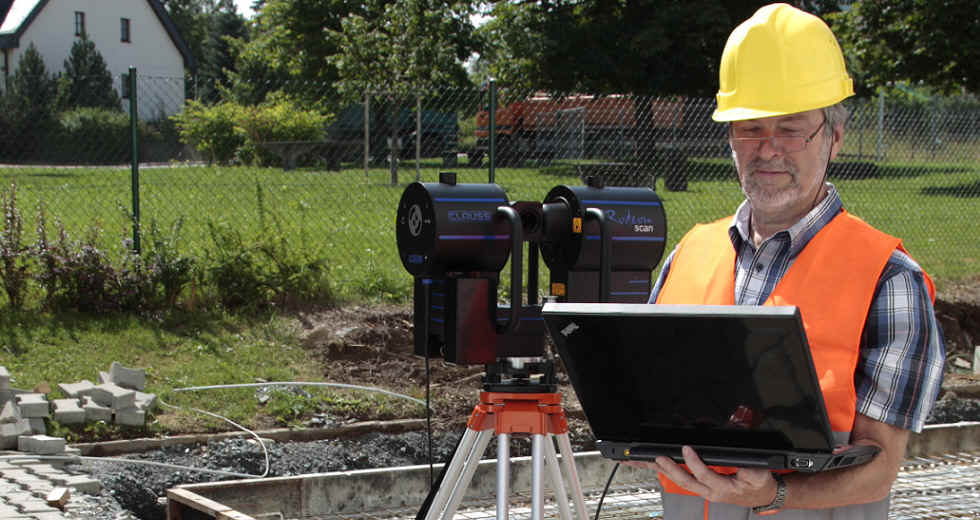

L.A.M.B.E.R.T. is the All-In-One solution for building and surveying engineers, architects and city planners and specialists for Facility Management. By using colorized laser scans, acquire data directly get from structural surveys to virtual city models, building models and system models for simulation.

All tools contained in the package, from laser scanner, point cloud and image processing, to visualization, simulation and presentation software, are perfectly synchronised to ensure an efficient work flow.



Features:

    RODEON Scan
  • One consistent work flow from the laserscan to the complete 3D model
  • Georeferencing/Registration of scan locations
  • Manifold export options for objects-, point cloud and panorama
  • Visualization of modeled objects with high-resolution original textures
  • Combination with existing LOD2 and CAD/GIS data
  • Extensive object data base for closeness to reality and buildig services & equipment

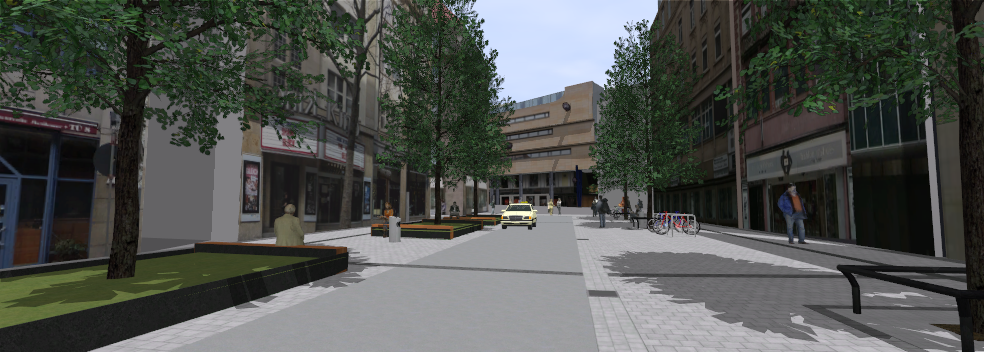

  • Simulation of shadows, daytime and season
  • Motion animation of objects
  • Flight simulations through the model

Operating Principle:

    1st step - Colorized 3D laser scan
  • 1 Gigapixel HDR panorama
  • 30 million measurement points
  • 250 m scan range
  • Georeferencing/Registration of scan location
  • 2nd step - Transfer from scan data into 3D objects
  • Intuitive modeling of all objects directly in the panoramic image (Laserphotogrammetric approach)
  • Combining of scan locations
  • Manifold export options for objects, point cloud and panorama

  • 3rd step - Visualisation / Simulation / Presentation
  • Visualisation of modeled objects with high-resolution original textures
  • Combination with existing LOD2 and CAD/GIS data
  • Extensive object data base for closeness to reality and building services and equipment
  • Simulation of shadows, daytime and season
  • Motion animation of objects
  • Flight simulations through the model


  •     VIS-All® 3D by Software-Service John GmbH is part of the package L.A.M.B.E.R.T.
Technical Specifications:
Physical Dimensions 420 mm x 170 mm x 300 mm
Weight 14 kg / 30 lbs
Laser Class 1 (eyesafe)
Maximum Range 250 m
Number of Pixels/Panorama 1000 megapixels, HDR, stitchless
Battery Pack Operating Time approx 3 hours
Vertical Scanning Resolution 0.125°
Horizontal Scanning Resolution at minimum 0.015°
Recording Range 0 to 360° horizontal, -75° to +90° vertical
Data Interface USB 2.0 High Speed
Scanning Time 12 minutes (for synchronous recordings at 0.125° resolution and 1 gigapixel full sphere panorama)
Optional Additional lighting by using 2 flashbulbs
Compatibility 100% compatible with all major CAD, 3D Modelling and Forensics software such as: SceneVision 3D, Autodesk AutoCAD, Autodesk 3DS Max, Bentley MicroStation, VIS-ALL 3D, MapScenes Forensics CAD, Crime Zone by CAD Zone

IMPORT File Formats:
Point Cloud: PLY, PTS , PTB, ASC, RPC
Image : RAW, TIF, JPG, PNG, BMP

EXPORT File Formats:
Point Cloud: PLY, PTS , PTB, ASC, RPC
Image : TIF, JPG, EXR
3D CAD: VRML, DXF
2D Floor Plan: DXF
Project File: PTGUI, Autopano, Papywizard (XML)

RODEONsmartscan

RODEONsmartscan

The most economiccal 3D laser scanner that creates point clouds. Here comes our RODEON smartscan in a new look - but not only the outer skin has changed... also the interior has been upgraded.

RODEONsmartscanRODEONsmartscan is a 3D laser scanner for measuring and documentation. By using modern laser technology, RODEONsmartscan produces a 3D point cloud of the environment in only a few minutes. Millions of measuring points are stored on SD card and, by using RODEONprocessor, can be safely transferred to your PC in any of your preferred data formats for processing.

RODEONsmartscan

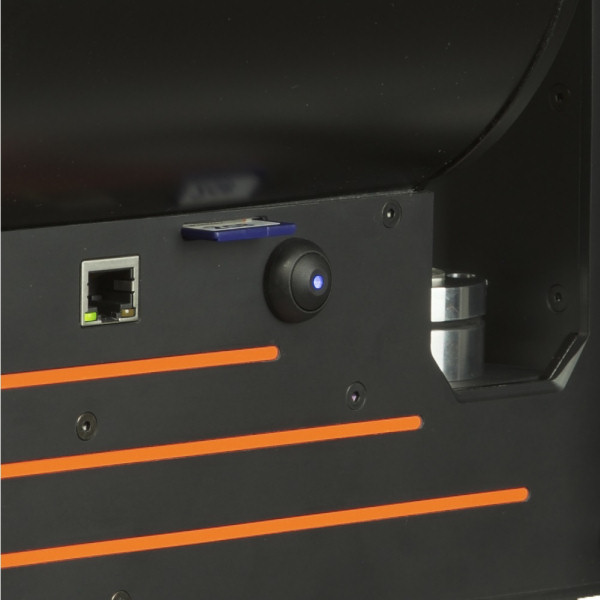

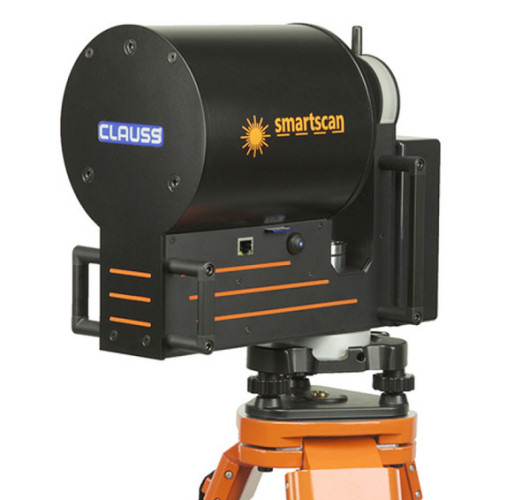

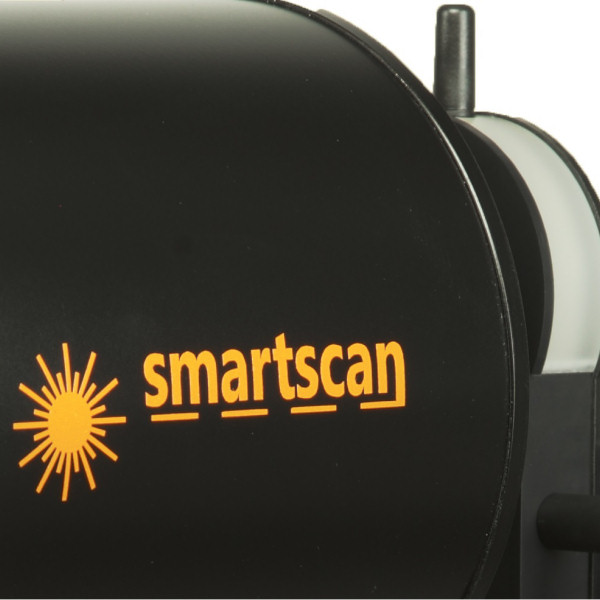

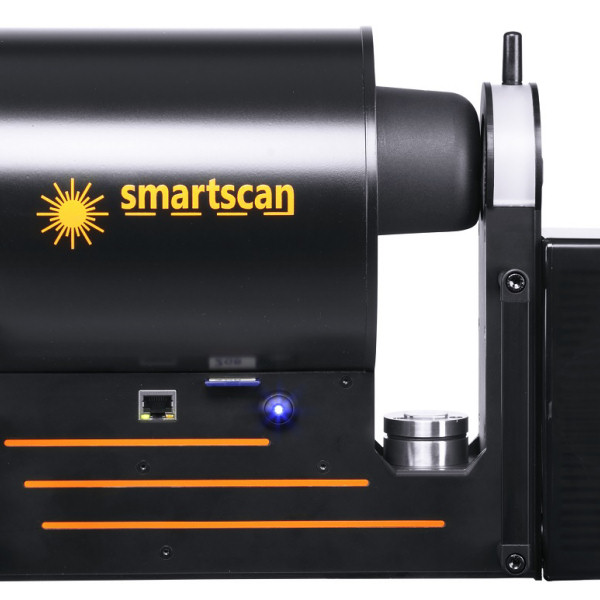

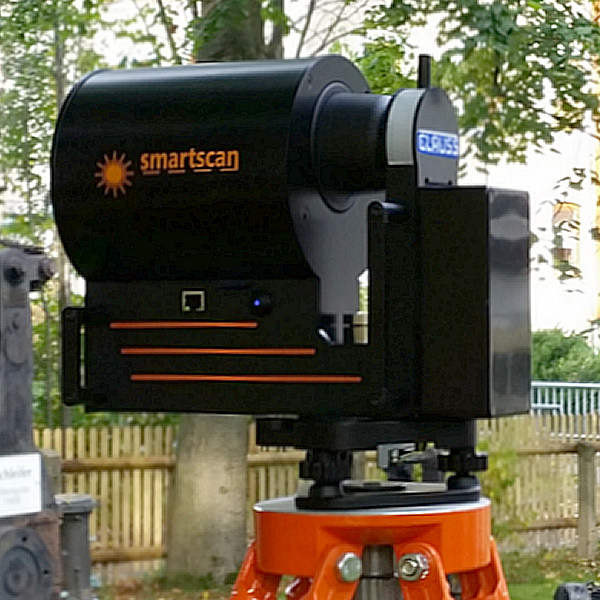

The RODEONsmartscan got a new color and now shines in a bright orange - for everybody easy to spot! Get a bit closer to the RODEONsmartscan and you will discover some more new features:

It is smaller in its measurements and also in its weight - we could achieve a weight loss of more than 10% in comparison to its predecessor. In addition to that, we have revised the handle bars. They are now much more slender as well as smaller and fit perfectly to the appearance of the RODEONsmartscan.

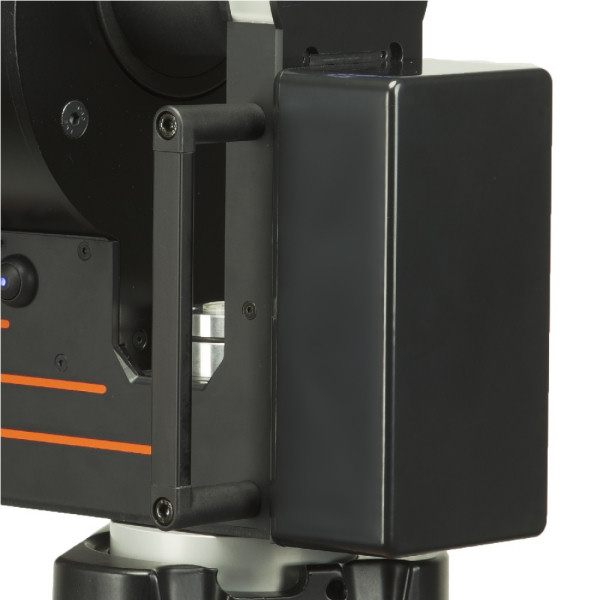

But of course they have not lost in their robustness nor durability. This way, the RODEONsmartscan may still easily be mounted quickly - the appropriate wild-type adapter is included in the standard scope of delivery.

Easily carry the RODEONsmartscan as hand luggage while travelling, because with its new measurements, the case fits for most airlines* and can be transported safe and sound.

RODEONsmartscan RODEONsmartscan RODEONsmartscan RODEONsmartscan RODEONsmartscan RODEONsmartscan RODEONsmartscan

Low investment costs, efficient workflow and new fields of application increase your profit

The universal workflow of RODEONsmartscan opens up a variety of new applications to the user - in architectural documentation, civil engineering, industrial documentation, product recording, quality control, reverse engineering, nature and monument protection, accident and crime scene recording, and much more.

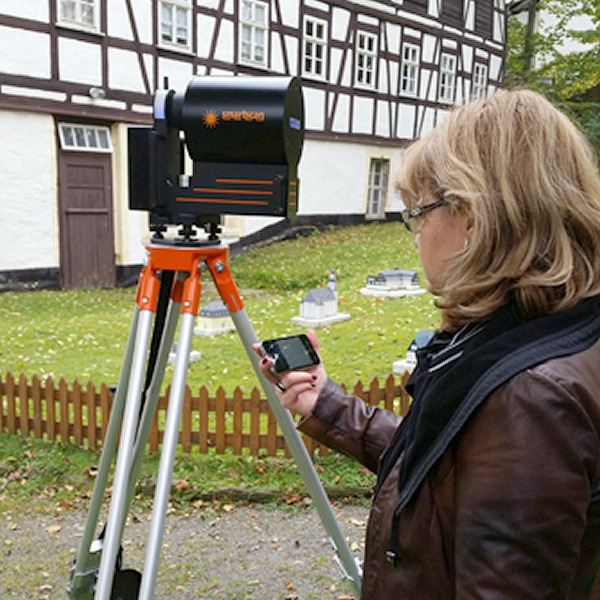

RODEONsmartscan is simply controlled by any device (smartphone, tablet, or laptop) via WLAN/LAN and with its built-in browser-related controls that ensures an easy operation.

While scanning, you can now already check if the scan is working to your individual needs - thanks to our statistics feature! In this newley-installed feature, you have now the ability to instantly preview the distance and echo image. A successful feedback is therefore immediately provided!

Also, you can easily relate the scanned positions when you are back in the office processing the data: RODEONsmartscan saves the scans according to date as well as time and stores the echo and distance image in the same folder as jpg-files. No need to figure things out anymore - relocating the scanned positions has never been that easy and quick!

Processing the data which is stored on the SD-card is still done using RODEONprocessor software while the export in most popular data formats (*.pts, *ply, *asc, *xyz, *ptb, *ptx, etc ) is continuously ensured.

In order to receive colorized pointclouds, the RODEONsmartscan may be combined with our panoramic head RODEON piXplorer.

If you prefer an integrated solution of scanner and camera combined in one device, please have a look at our RODEON Scan.

Furthermore, we have an SDK available which allows the RODEONsmartscan to be controlled via remote control.

Features:

  • Remote control - Quick and easy scan process control via WLAN or LAN. The browser-based control allows the operation of the Smartscan with any smartphone, tablet or notebook.
  • Small and compact - The compact design allows quick relocation.
  • Quick release battery pack - Battery exchange in one second. Charging time is approximately 2 hrs.
  • Scan data management - Scan data is stored on SD card to be easily t ransferred to PC for processing. Converting in different data formats can be easily done with included batch processing software RODEONprocessor.
  • Efficiency - Lowest investment costs and time saving during recording and processing, broadening of activity fields

Advantages:

  • Efficient - low investment costs
  • Uncomplicated - One-button-operation, Quick release battery pack
  • Universal - Control with any smartphone
  • Portable - storage on SD card
  • Compatible - RODEONprocessor for saving in manifold formats
  • Productive -quick scans and quick relocation by compact design

Technical Specifications:
Physical Dimensions 240 x 250 x 160 mm
Weight 5.6 kg / 12.3 lbs
Scope of Delivery Scanner, Rechargeable Battery (approx 5 hrs run time), Battery Charger, Wild-Adapter, SD Card, Transportation Case
Laser Class 1 (eyesafe)
Maximum Range 250 m
Vertical Scanning Resolution 0.125° (2880 3D pixel at 360°)
Horizontal Scanning Resolution at minimum 0.015° (24,000 3D pixel at 360°)
Scanning Time 9.6 minutes for 4 million points
Wave Length 905 nm
Beam Divergence 5.0 mrad
Measuring Rate 32 Mio. measuring points/Scan; 14,400 Points/Second
Water and Dust Protection IP40 (IEC 60529)
Recording Field of View 0 to 360° horizontal, 330° vertical
User Control WLAN/LAN, any browser-enabled smartphone or tablet with WLAN
Data Control SD Card
Compatibility 100% compatible with all major CAD, 3D Modelling and Forensics software such as: SceneVision 3D, Autodesk AutoCAD, Autodesk 3DS Max, Bentley MicroStation, VIS-ALL 3D, MapScenes Forensics CAD, Crime Zone by CAD Zone

EXPORT File Formats:
Point Cloud: PLY, PTS , PTB, ASC, RPC, DXF

RODEONmetric Modeler

RODEONmetric Modeler

The intuitive All-in-One software to process your point clouds: Measure in the panorama, model your objects and directly export complete 3D objects!

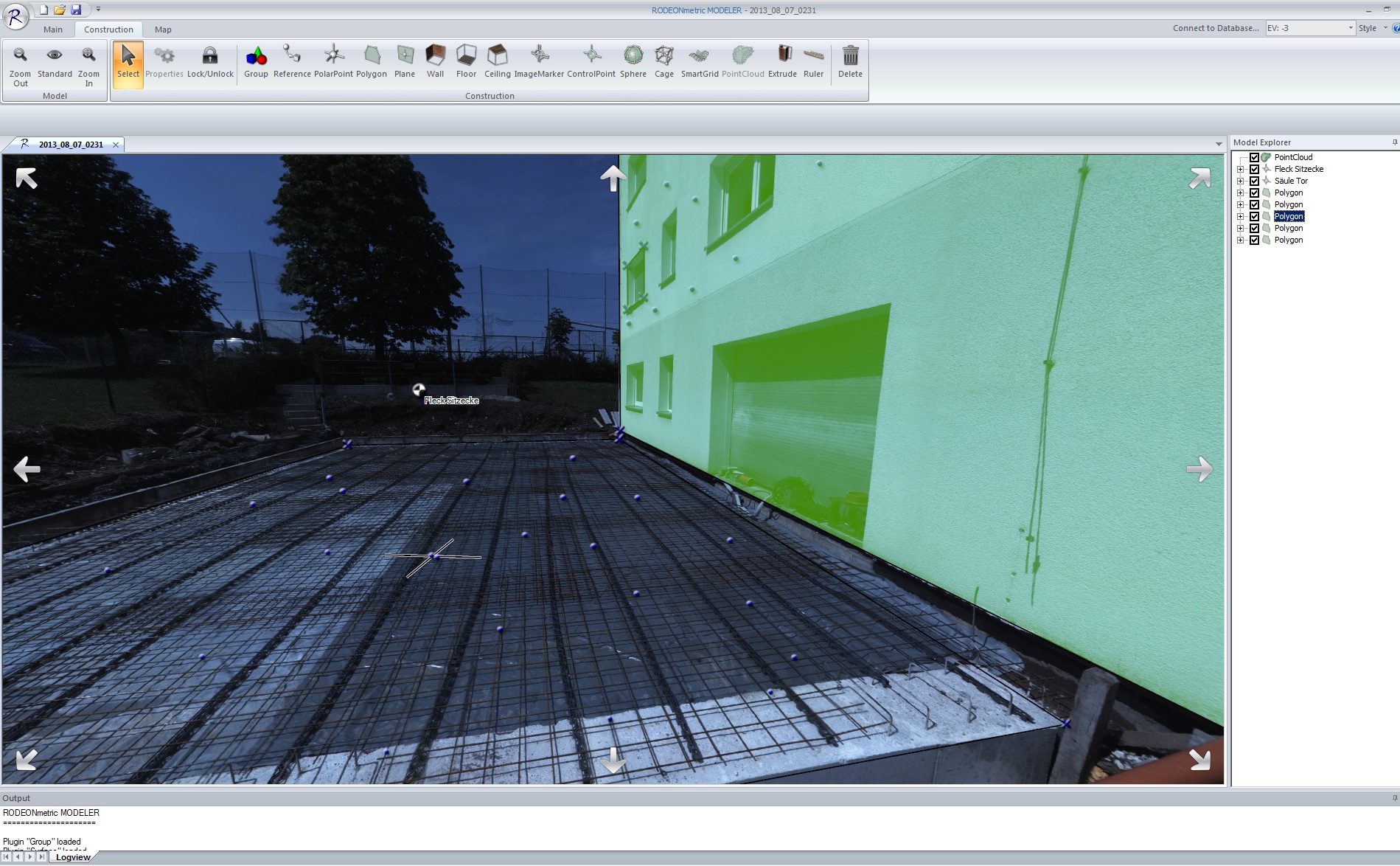

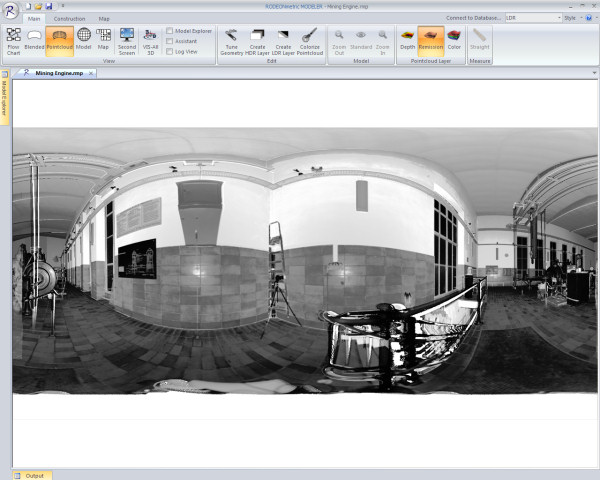

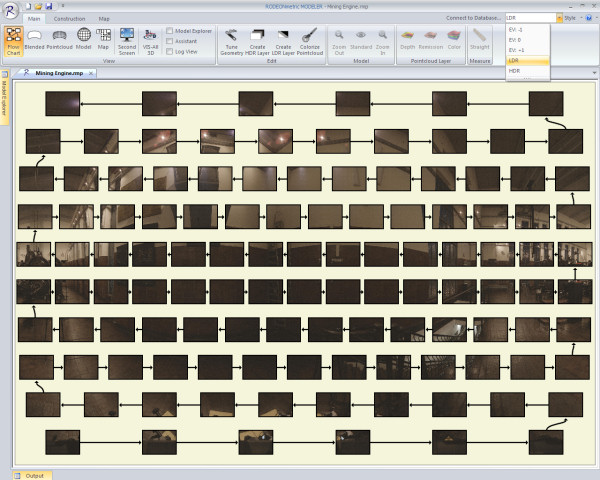

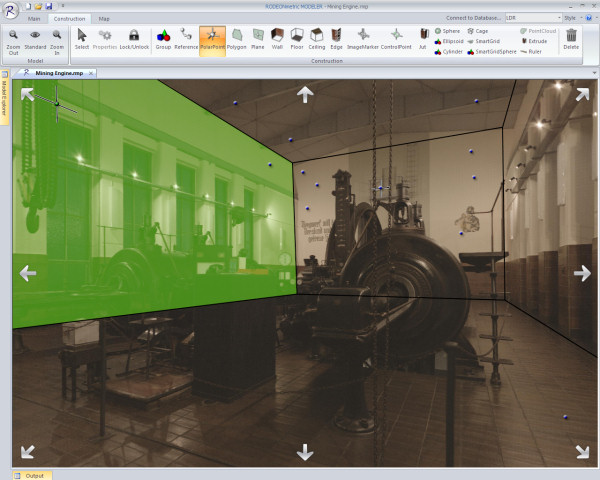

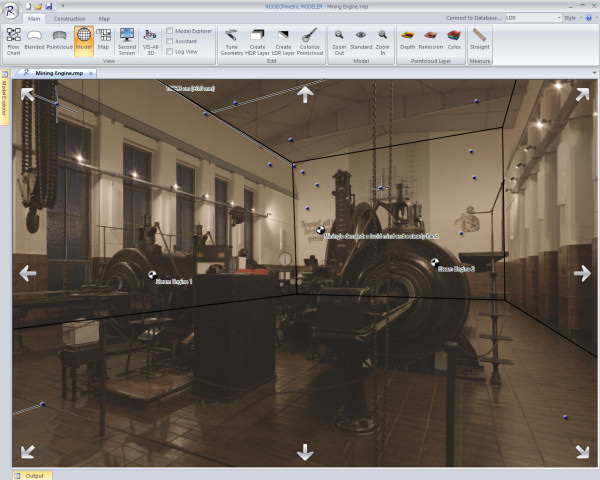

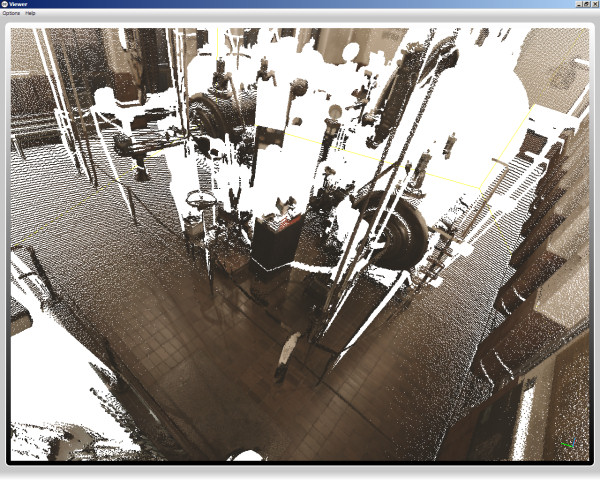

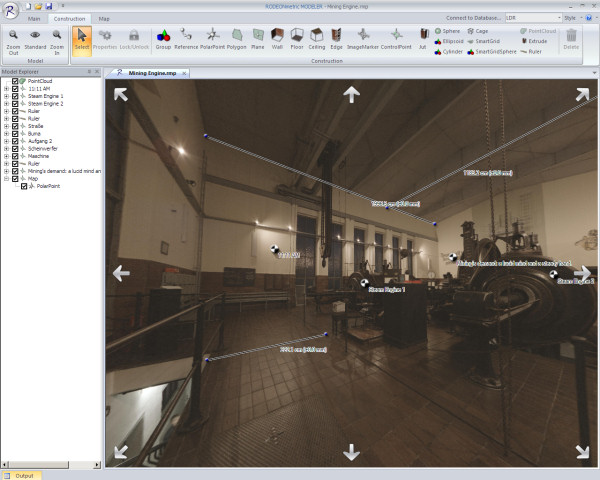

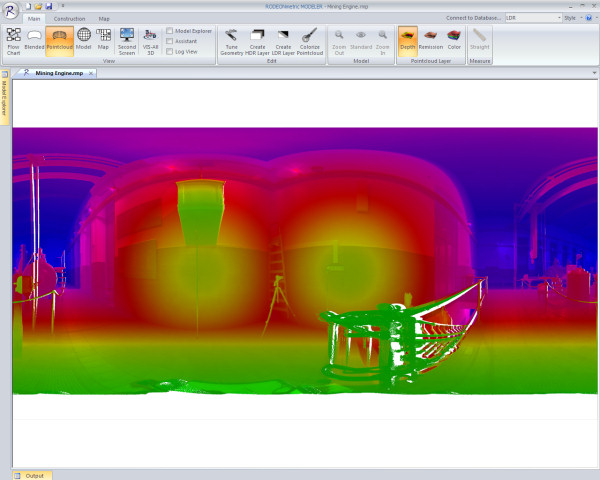

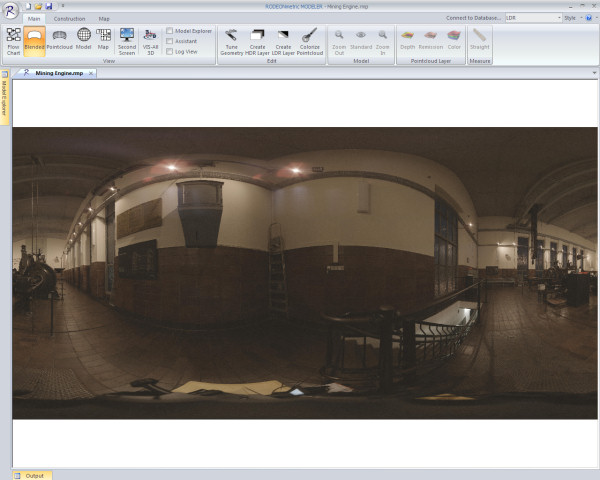

The RODEONmetric Modeler uniquely combines Laserscan data with photographically recorded images from the same standpoint. During navigation within the clear, high-resolution 2.5D color picture and the selection of objects, the software automatically associates these objects with 3D data. The work-intensive navigation and selection in three-dimensional point clouds is not longer required.

Due to the innovative laserphotogrammetric approach, not only CAD objects and surfaces can be created. Even perspectively correct image rectifications (pictures of facades, Ortho photos) and survey photographs, like they were only accessible by Multiple picture photogrammetry and specialised software products.

Technical Specifications:
Compatibility 100% compatible with all major CAD, 3D Modelling and Forensics software such as: SceneVision 3D, Autodesk AutoCAD, Autodesk 3DS Max, Bentley MicroStation, VIS-ALL 3D, MapScenes Forensics CAD, Crime Zone by CAD Zone

IMPORT File Formats:
Point Cloud: PLY, PTS , PTB, ASC, RPC
Image : RAW, TIF, JPG, PNG, BMP

EXPORT File Formats:
Point Cloud: PLY, PTS , PTB, ASC, RPC
Image : TIF, JPG, EXR
3D CAD: VRML, DXF
2D Floor Plan: DXF
Project File: PTGUI, Autopano, Papywizard (XML)
